Automatic Laser Pneumatic Chuck Main Chuck For Pipe Cutting Machine
Descripition
The successful development of our laser pneumatic chuck is to integrate the features of front-mounted pneumatic chuck produced by our company and other related pneumatic products for improvements for many times. It has the features such as simple structure, convenient installation, strong applicability, clean and durable, reliable clmaping, durable precision, and etc, to improve operation efficiency, reduce manufacturing cost and reduce the labor intensity of workers for the enterprise.
When the laser pipe cutting machine cuts and processes pipe fittings, it is necessary to clamp and fix the pipe fittings with a chuck. The full-stroke chuck generally has two sets of jaws that can be opened and closed respectively. However, when it is used to clamp thin pipes or fragile pipe fittings, the stroke of the jaws is not easy to control. The processed pipe fittings are flattened or broken and the processed pipe fittings are scrapped. In response to this problem, the DF series full-stroke square hole chuck - G620DF-245 chuck is launched.
| Performance parameters |
| Model | G620DF-245 |
| Diameter/Jaw stroke | 236MM |
| Max. clamping force | 210KG/0.6MPA |
| Allowable pressure | 0.2-0.9MPA |
| Limit speed | 150R/MIN |
| Clamping range | Φ6-Φ242MM |
| Central height | 315MM |
| Moment of inertia | 5.2KG/M2 |
| Weight of rotating part | 120KG |
| Whole weight | 250KG |

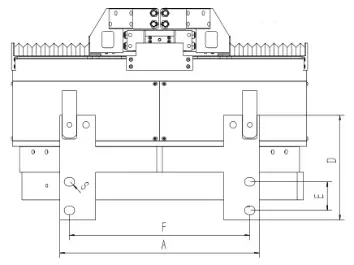

| Dimensions |
| Model | A | B | B1 | C | D | E | F | G | H | J | S |
| G620DF-245 | 420 | 315 | 624 | 662 | 220 | 60 | 380 | 403.5 | 245X245 | 444.5 | 18X22 |
Advantages
1. High transmission efficiency and synchronization accuracy
2. In the case of the same size of the chuck, the applicable size range of the processed pipe is wider. It can be effectively used to clamp thin pipes or fragile pipe fittings to prevent flattening. Market demand
3. The installation position of the reducer can be adjusted arbitrarily
4. Reduce the difficulty of processing and manufacturing, which is conducive to mass production; better dust-proof effect and stronger pollution resistance
